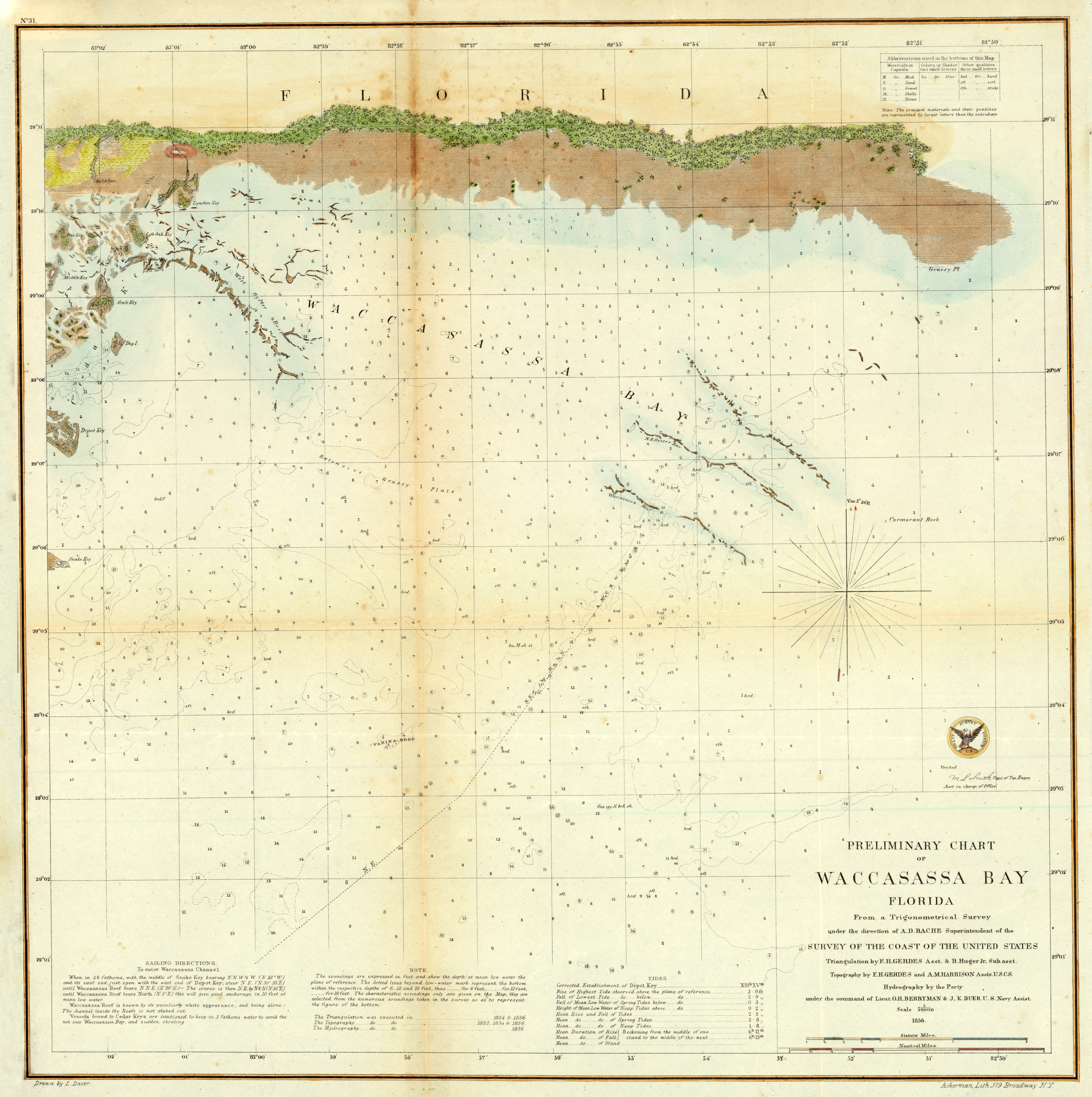

Waccasassa Bay Nautical Chart, 1856

Preliminary chart of Waccasassa Bay, Florida : from a trigonometrical survey under the direction of A.D. Bache ...

Waccasassa Bay Nautical Chart, 1856

Map Number



State Library of Florida, Florida Map Collection, TRANSPORTATION NAUTICAL CHARTS 0017




Daser, L.

Additional Creators

Bache, A. D. (Alexander Dallas), 1806-1867.

Gerdes, F. H.

Huger, Benjamin, 1805-1877.

Harrison, A. M. (Alexander Medina), 1829-1881.

Berryman, O. H.

Duer, J. K.

Smith, M. L.

United States Coast Survey.

Ackerman Lithr.


NY : Ackerman Lith., 1856.

Physical Description

1 map : hand-colored; 46 x 46 cm., on sheet 50 x 49cm.


Scale 1:50,000 (W 83°02'-- W 82°50'/N 29°11'--N 29°01')

General Notes

Bathymetry shown by soundings in feet and bathymetric isolines.

The triangulation was executed in 1854 & 1856. The topography [was executed in] 1852, 1854 & 1856. The hydrography [was executed in] 1856.

U.S. Coast Survey Office: verified, M.L. Smith, capt. of top. engrs., asst. in charge of office.

Hand colored.

Includes sailing directions.
