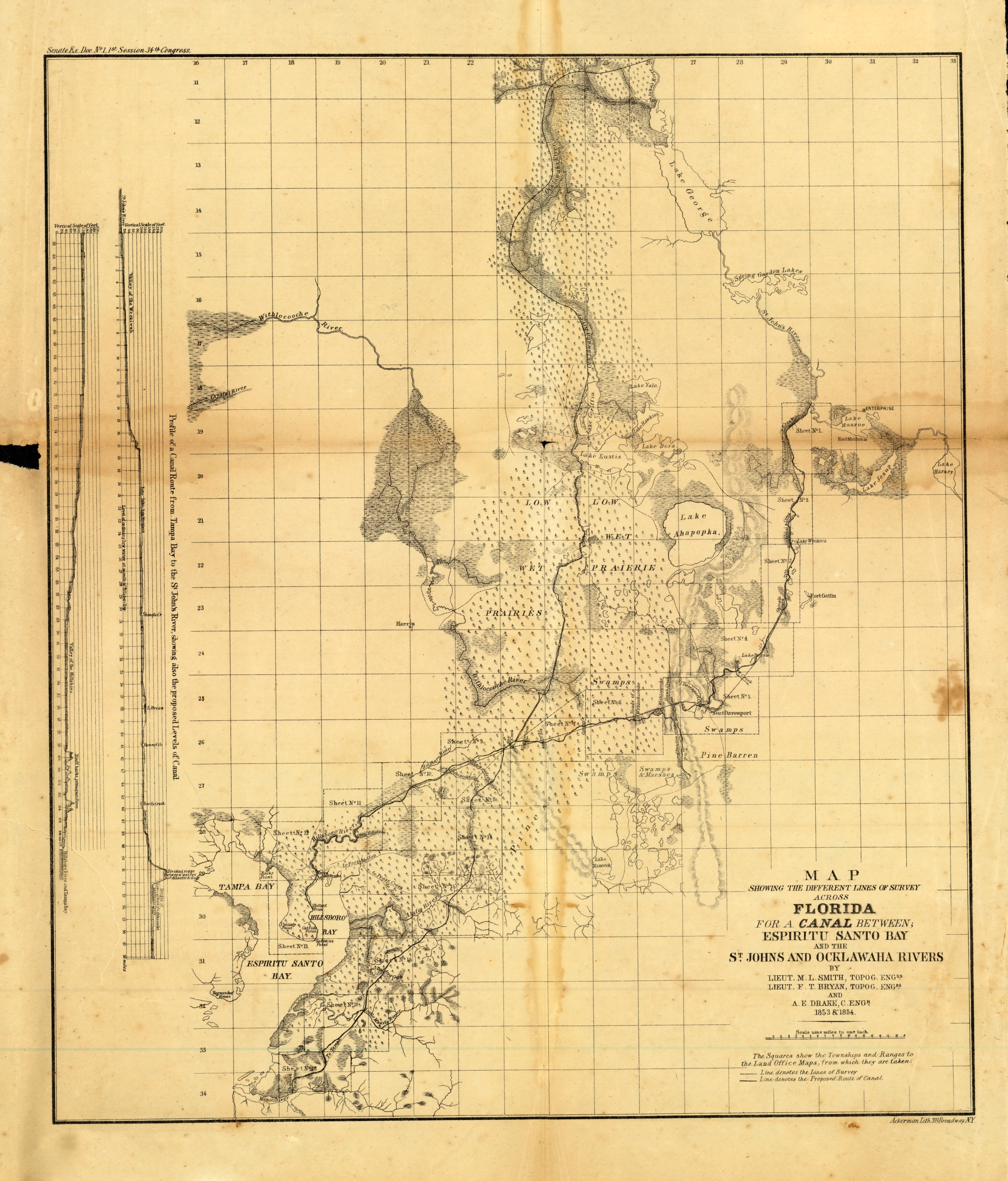

Canal Survey Map of St. Johns and Ocklawaha Rivers, 1854

Map showing the different lines of survey for a canal between Espiritu Santo Bay and the St. Johns and Ocklawaha Rivers


Canal Survey Map of St. Johns and Ocklawaha Rivers, 1854

Map Number

fmc0042

Source

State Library of Florida, Florida Map Collection, TRANSPORTATION CANALS 0001

Date

1854

Creator

Smith, M. L.

Additional Creators

Bryan, F. T.

Drake, A. E.

Publisher

NY : Ackerman Lith., [1854].

Physical Description

1 map ; 40 x 35 cm. on sheet 45 x 40 cm.

Scale

Scale [1:570,240]. 1 in. to 9 miles.

General Notes

Senate Ex. Doc. No. 1, 1st Session, 34th Congress.

1853 & 1854.

Includes Profile of a canal route from Tampa Bay to the St. Johns River, showing also the proposed levels of canal.
